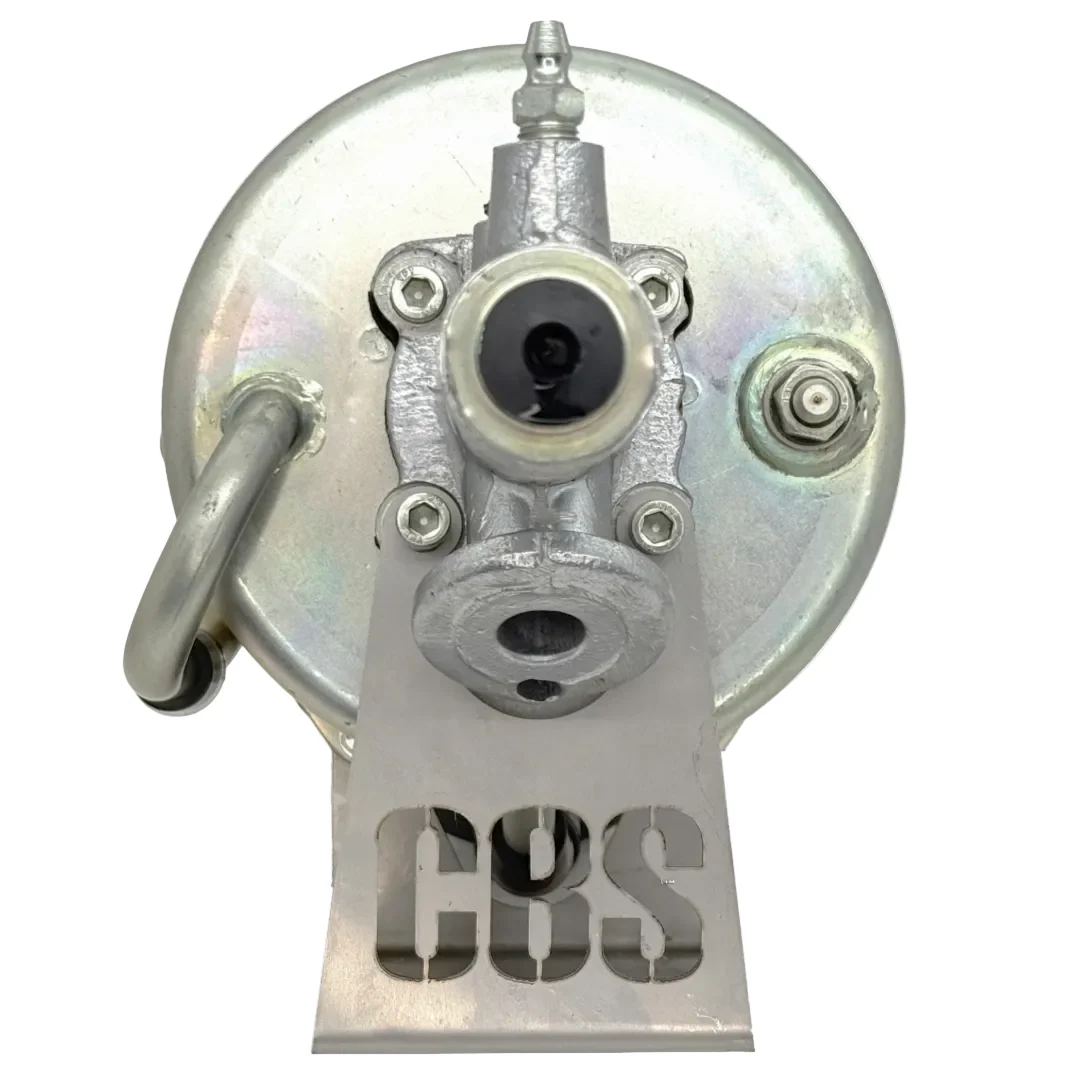

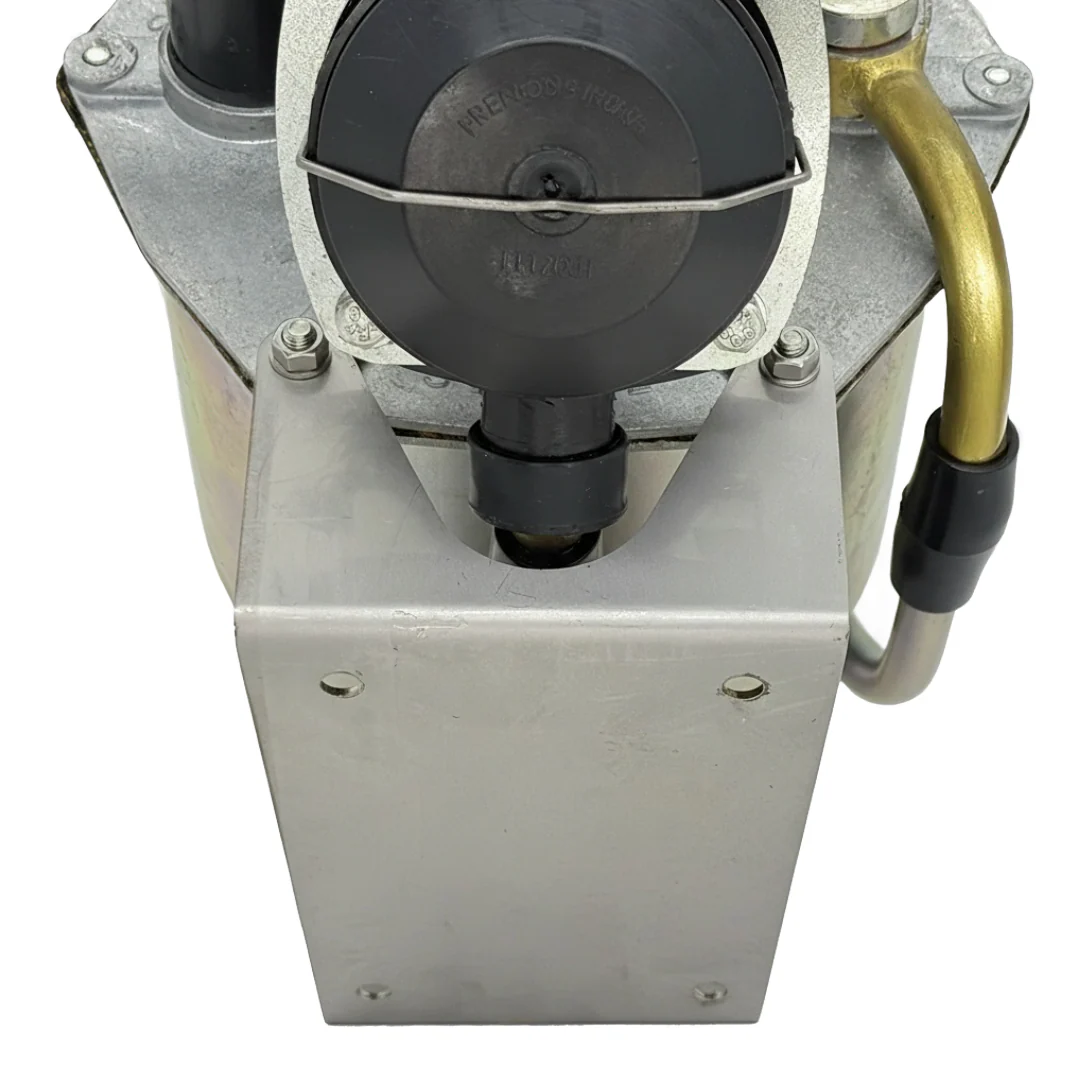

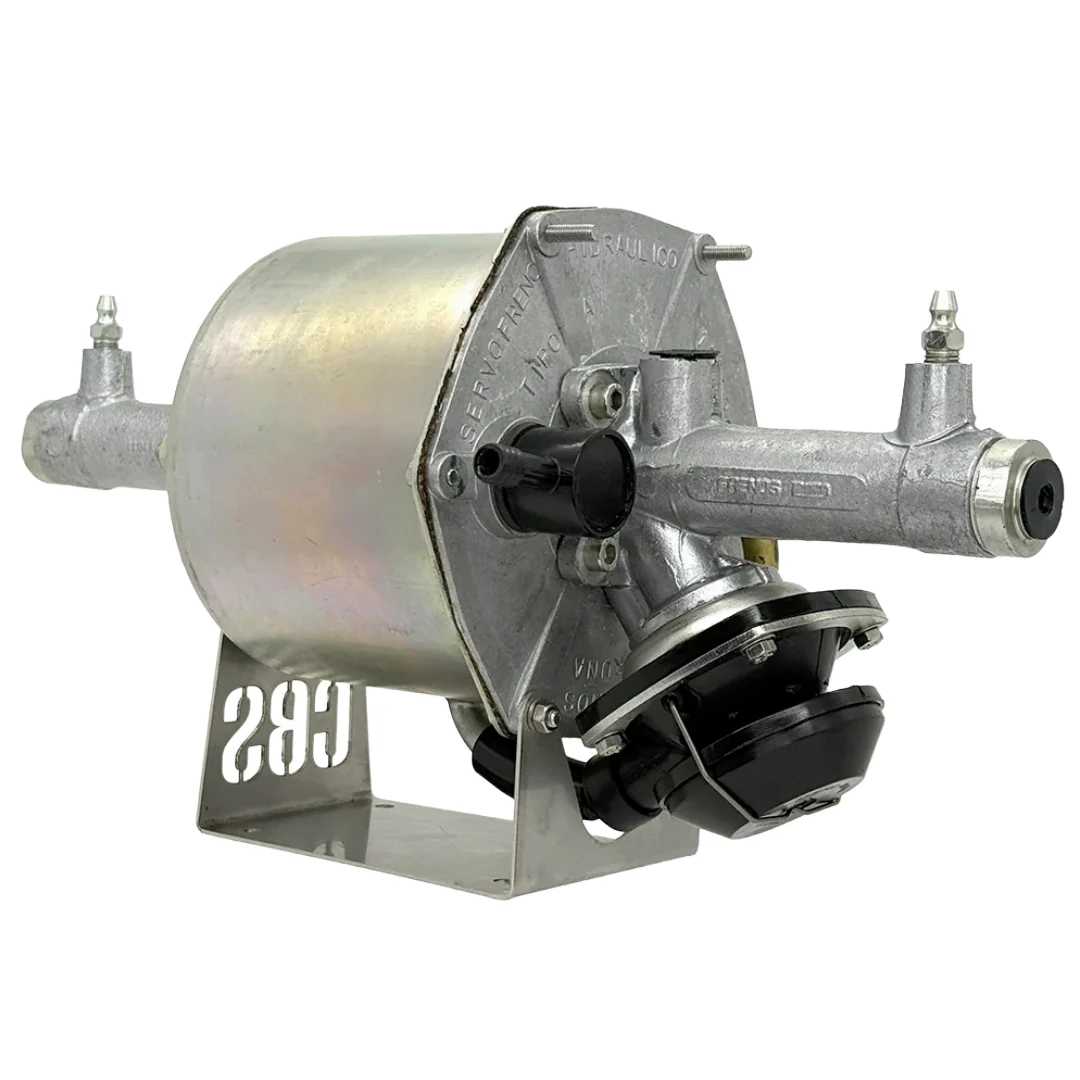

Bottom Mounting Bracket For REMSERVDUAL Dual Circuit Remote Brake Servo
Here's a simple mounting option for our #REMSERVDUAL.
Four 6mm mounting holes.
Designed to mount on a horizontal surface like a boot floor or chassis member with the dual servo bolted through the four mounting points.
Precision Laser cut 1.5mm thick Stainless Steel.
Replacement fixings included for fitting to servo. .
Mounts on two of one cylinder's mounting bolts and two of the vacuum chamber flange bolts. It may be that you need to move the two longer flange bolts to the correct position.
Footprint 135mm x 90mm x 103mm high.
Weight 228g.
BOTTOM MOUNTING BRACKET FOR DUAL CIRCUIT REMOTE SERVOĀ #DUALBKT2
BRACKET ONLY - SERVO NOT INCLUDED
