Canister diameter 138mm.

Overall length 230mm.

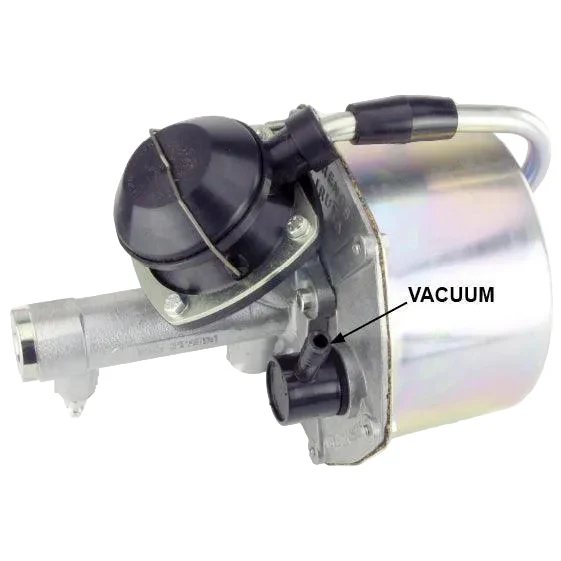

Vacuum inlet 3/8" (10mm) push-on hose tail.

Fluid inlet and outlet female threads 3/8"UNF.

2:1 power boost ratio at 600mm Hg vacuum.

Two M5 mounting studs on cylinder flange and one M8 on rear of canister.

Weight 2.05kg.

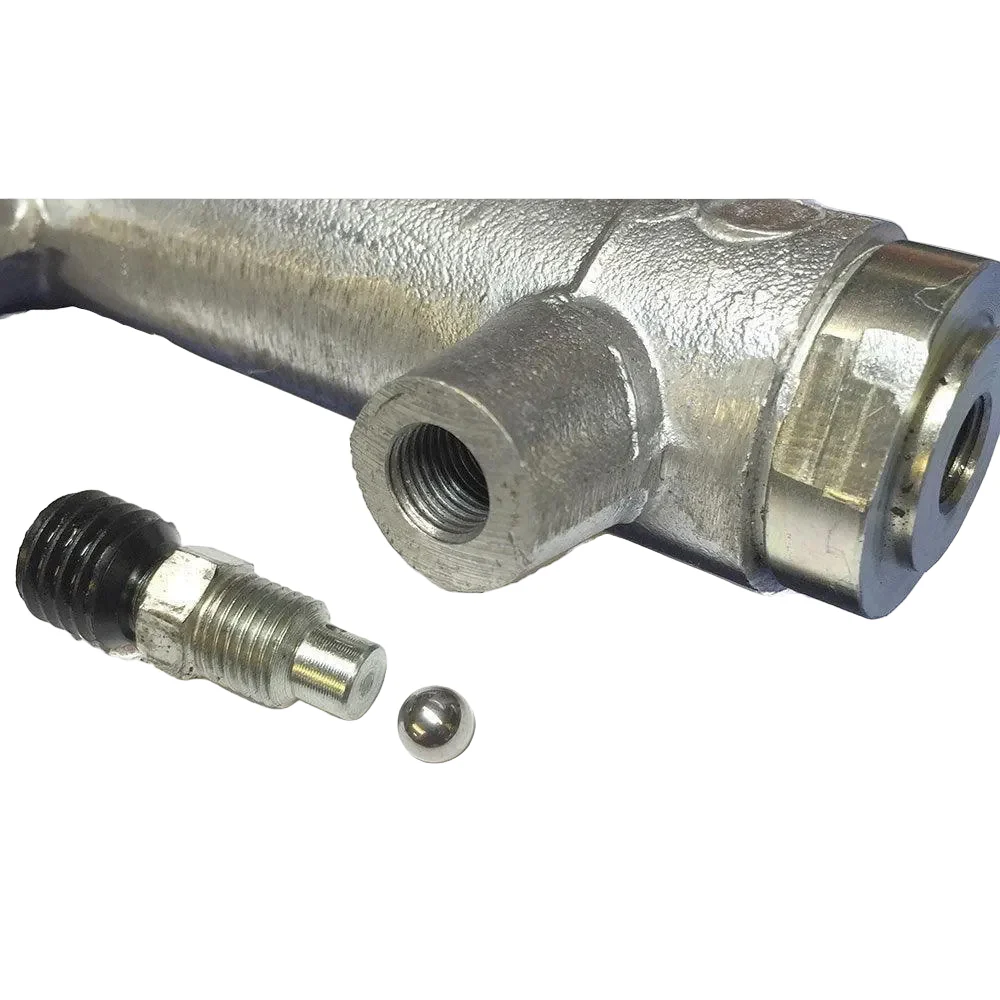

NOTE: THE BLEED SCREWS HAVE AN ACCOMPANYING BALL BEARING SEAL, BE CAREFUL NOT TO LOSE IF SCREW IS REMOVED. (see picture)

A mounting bracket is available #SINGBKT

COMPACT REMOTE SERVO #REMSERV2
