Here's a simple, universal mounting option for our #REMSERV2

Three 6mm mounting holes.

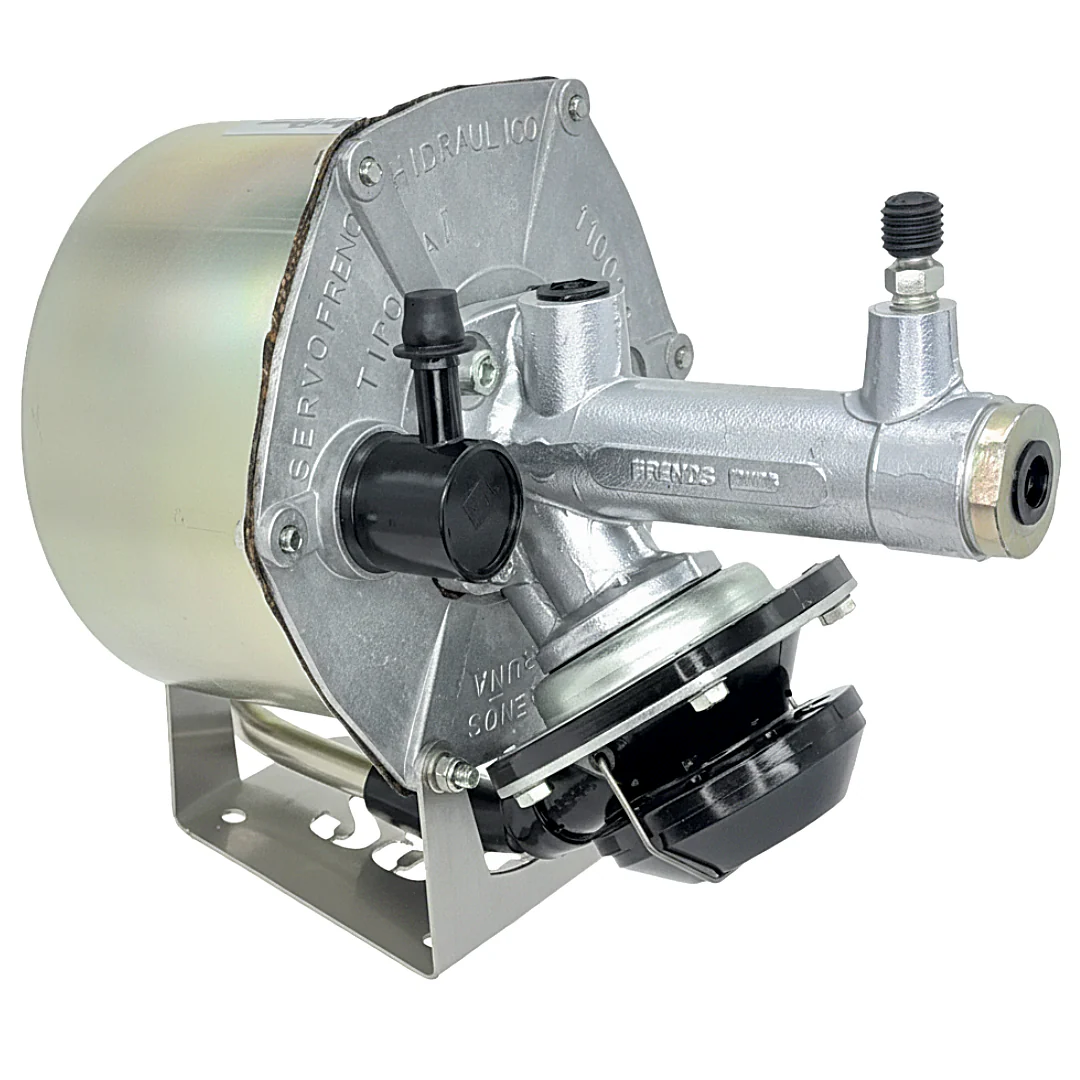

Designed to mount on a horizontal surface like a boot floor or chassis member.

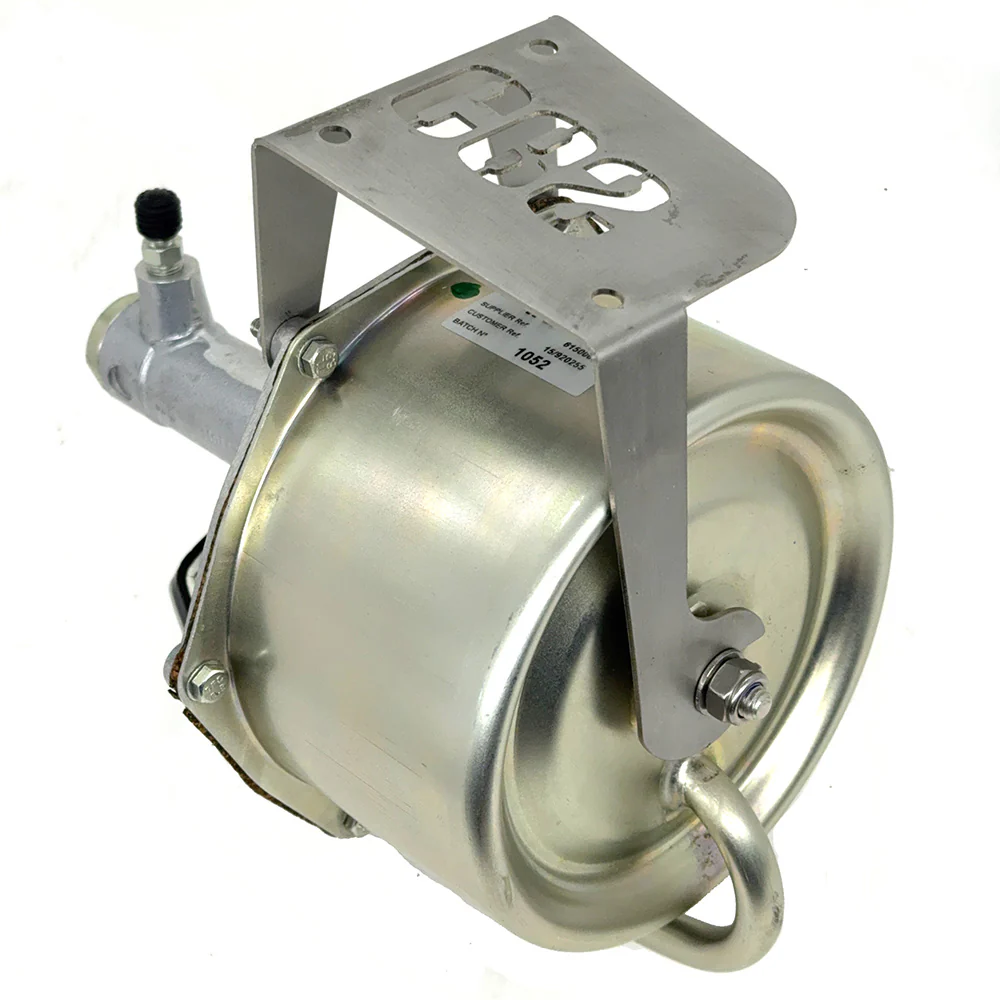

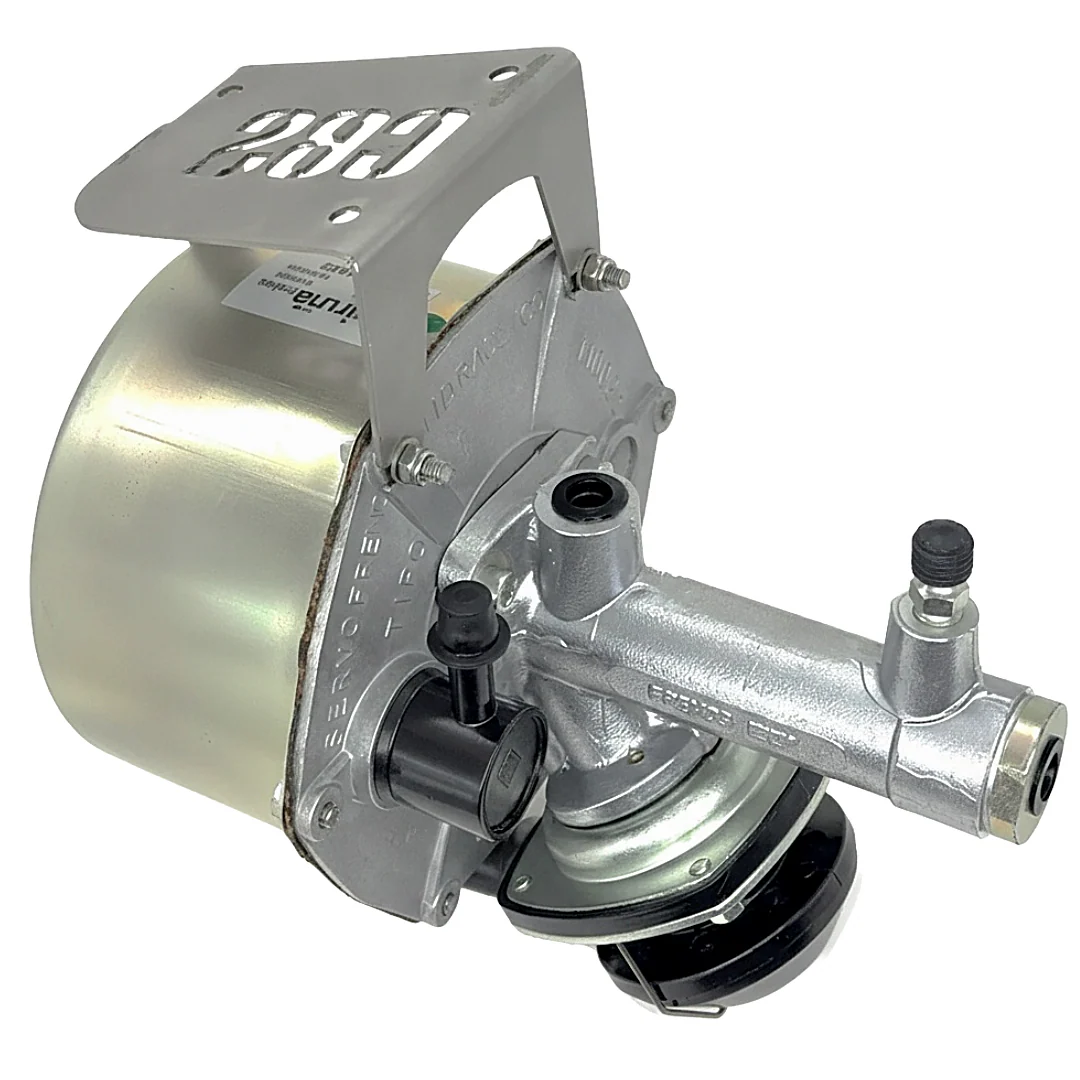

Bracket can be used upside down but may need some packers to keep the servo sloped up for easy bleeding.

Precision Laser cut 1.5mm thick Stainless Steel. Replacement fixings included for fitting to servo. .

The #REMSERV2 mounts on two of the cylinder's mounting bolts and the central, M8 vacuum chamber stud.
It may be that you have to move the two longer mounting bolts in the flange to the position that you need.

Footprint 90mm x 90mm x 110mm (max) high.

Weight 121g.

UNIVERSAL MOUNTING BRACKET FOR SINGLE CIRCUIT REMOTE SERVO REMSERV2  #SINGBKT

BRACKET ONLY - SERVO NOT INCLUDED
