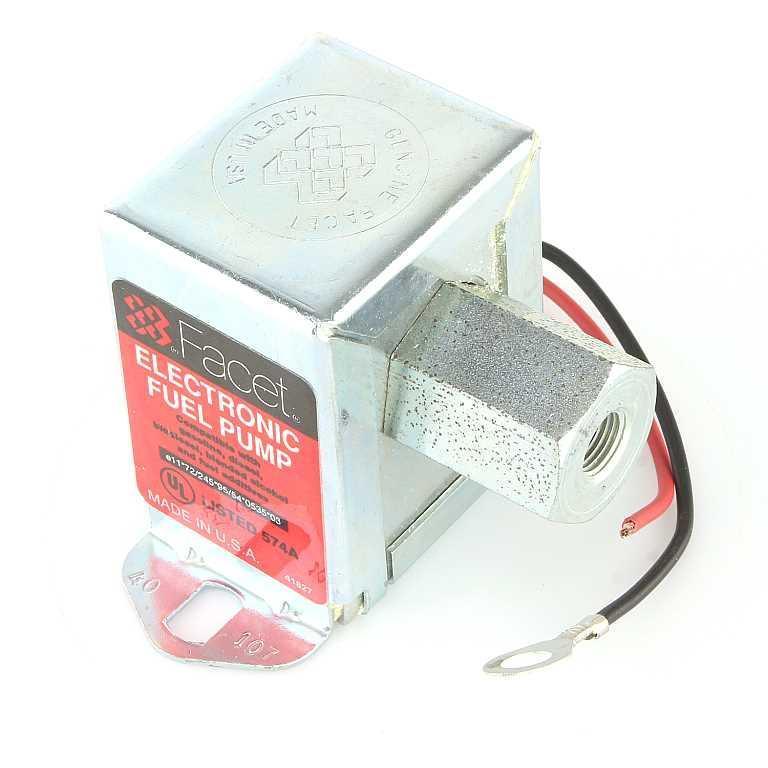

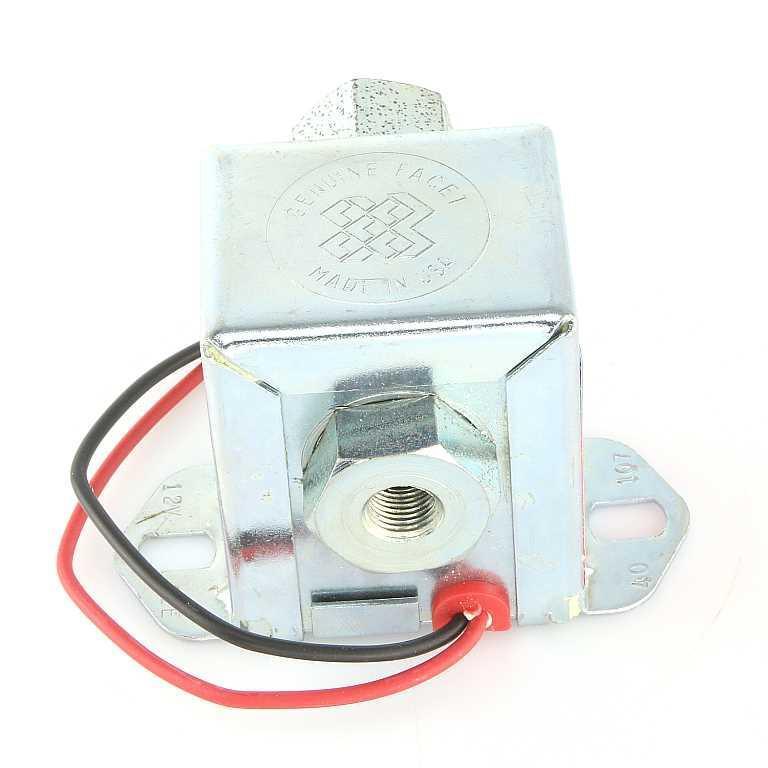

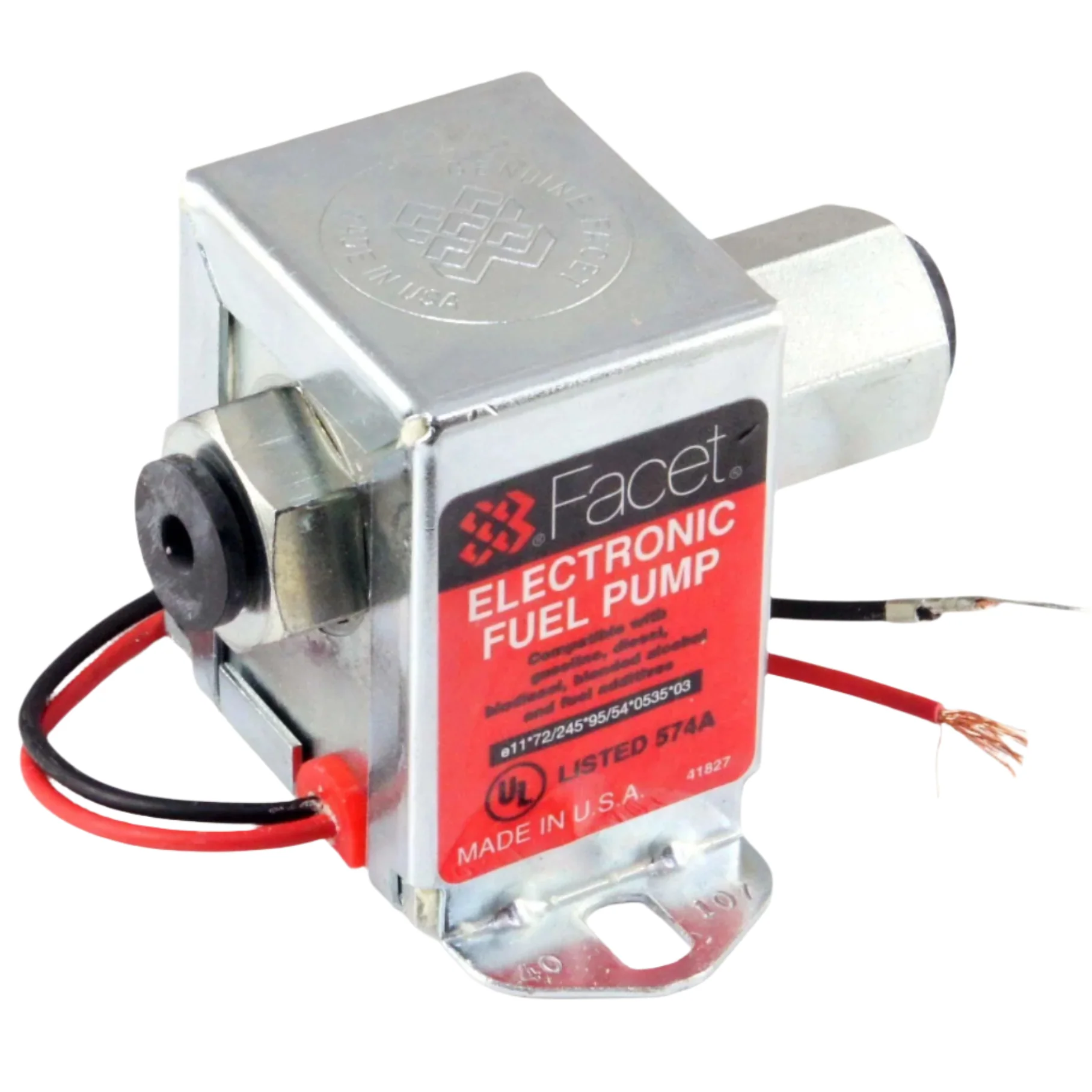

Facet COMPETITION Solid State Cube Pump
12 volt.
Reliable solid state internals, no electrical contacts to burn out, no bearings to wear and no diaphragms to perish.
Less than 2 amp current drain.
Will self prime up to 0.3mtrs lift.
Footprint 80mm x 80mm x 60mm high (without unions).
2 bolt fixing at 65mm centres.
Union thread size 1/8" npt.
PIPE UNIONS NOT INCLUDED
Weight 469gm.
Operating temperature range -31 to +55 deg C.
Will pump from 4 psi to 7 psi.Â
IMPORTANT NOTE: ALL FUEL PUMPS MUST BE FITTED WITH A PRE-FILTER ON THE INLET SIDE. RETURNED PUMPS WILL NOT BE REPLACED OR REFUNDED IF FOUND DAMAGED DUE TO DEBRIS.
TO PREVENT VAPOUR LOCK OR AIRLOCK IT IS RECOMMENDED THAT ALL FUEL PUMPS ARE MOUNTED WITH THE OUTLET HIGHER THAN THE INLET.
FACET COMPETITION SOLID STATE CUBE FUEL PUMPÂ #FAC2
