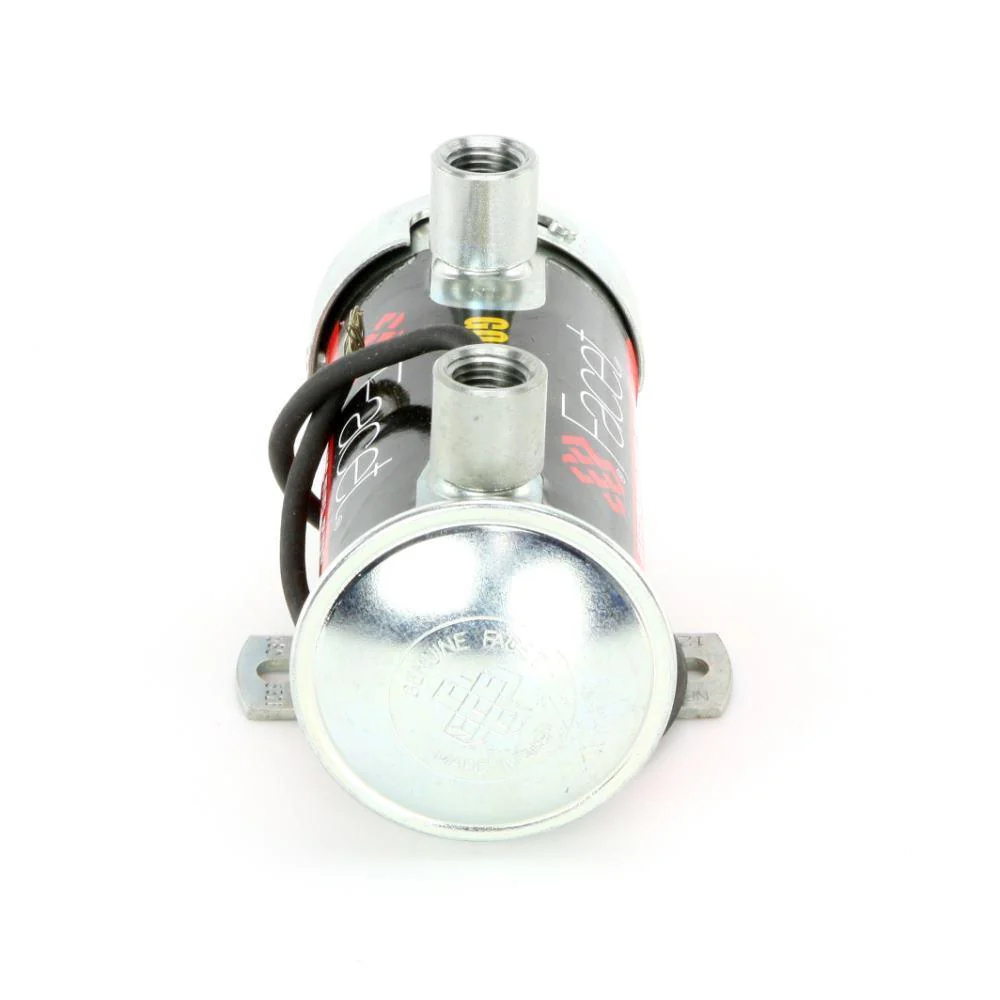

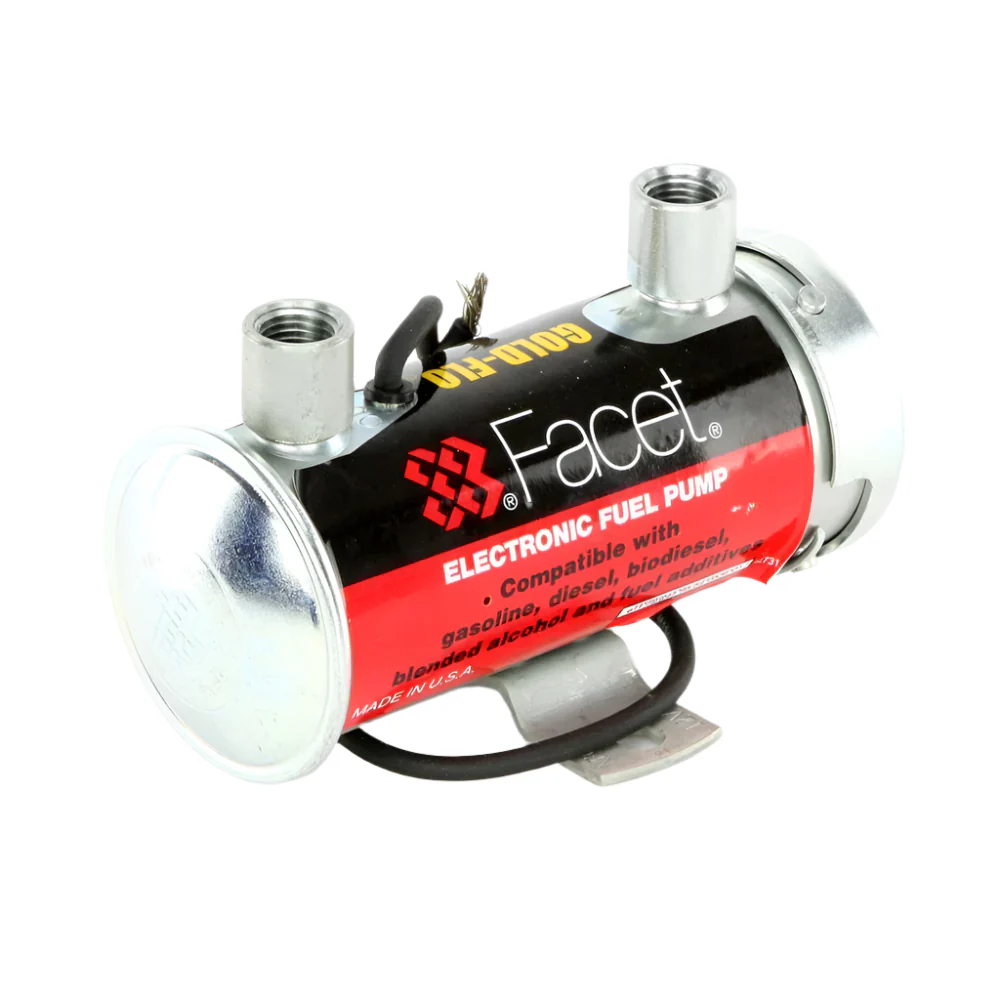

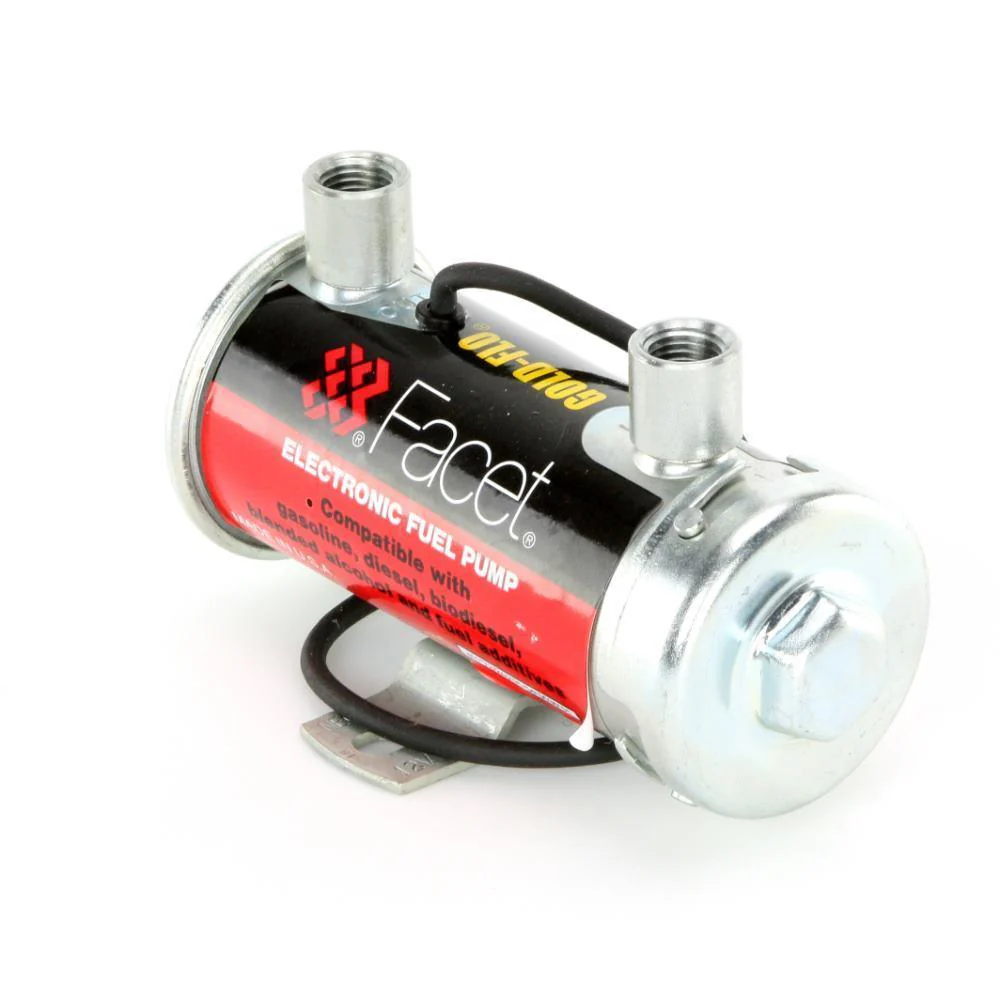

Facet RED TOP Competition Solid State Cylindrical Pump
Sealed, reliable solid state internals. 12 volt. Requires separate earth connection to pump body via fixing bolt.
Less than 2 amp current drain.
Will self prime up to 1 mtr lift.
Footprint 140mm x 82mm x 85mm high (without unions).
2 bolt fixing at 65mm centres.
Removable, washable internal nylon filter.
Weight 760gm.
Operating temperature range -60 to +43 deg C. Â
Will pump from 6.5 psi to 8 psi. Flow rate 151 ltrs/hour (35 US gal/hr.)
Union thread size 1/4" npt.
PIPE UNIONS NOT INCLUDED
IMPORTANT NOTE: ALL FUEL PUMPS MUST BE FITTED WITH A PRE-FILTER ON THE INLET SIDE. RETURNED PUMPS WILL NOT BE REPLACED OR REFUNDED IF FOUND DAMAGED DUE TO DEBRIS.
TO PREVENT VAPOUR LOCK OR AIRLOCK IT IS RECOMMENDED THAT ALL FUEL PUMPS ARE MOUNTED WITH THE OUTLET HIGHER THANÂ THE INLET.
NOT SUITABLE FOR INJECTION.
FACET RED TOP COMPETITIONÂ CYLINDRICAL SOLID STATE PUMP #FAC4
