HYDRAULIC HANDBRAKE (NO RATCHET)

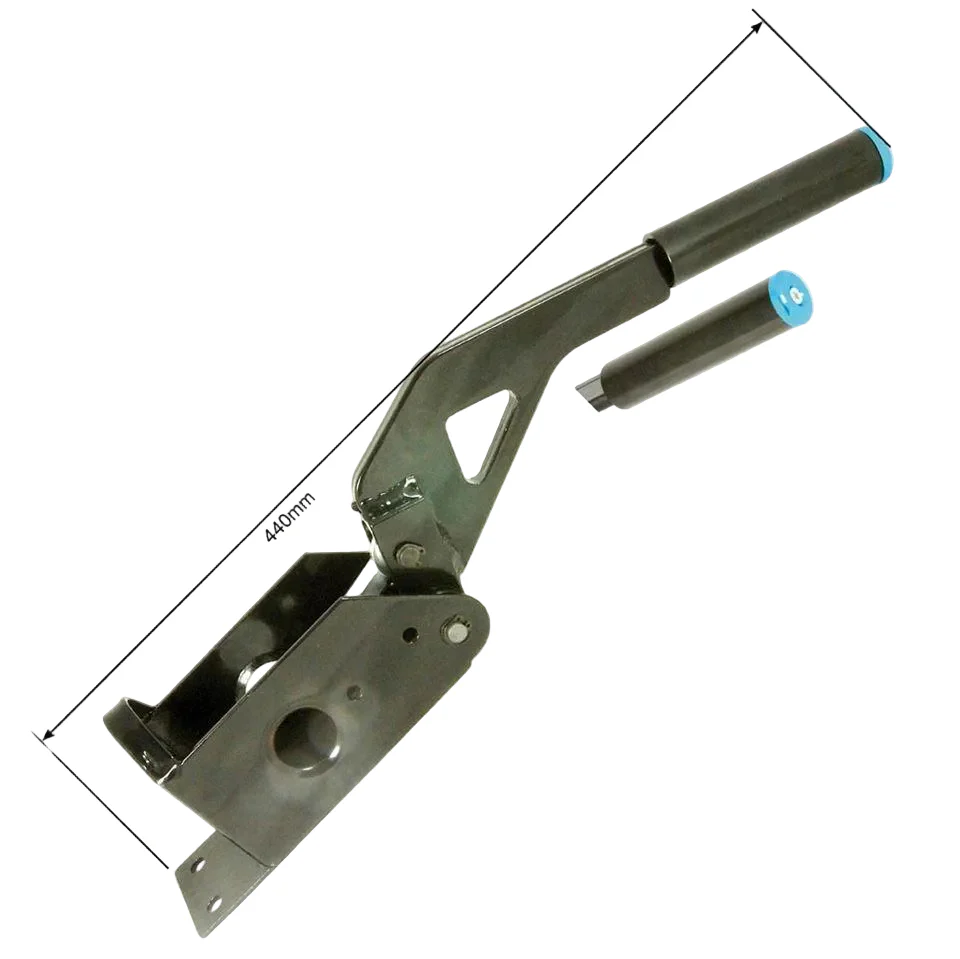

Gloss black powder-coated horizontal hydraulic handbrake assembly.

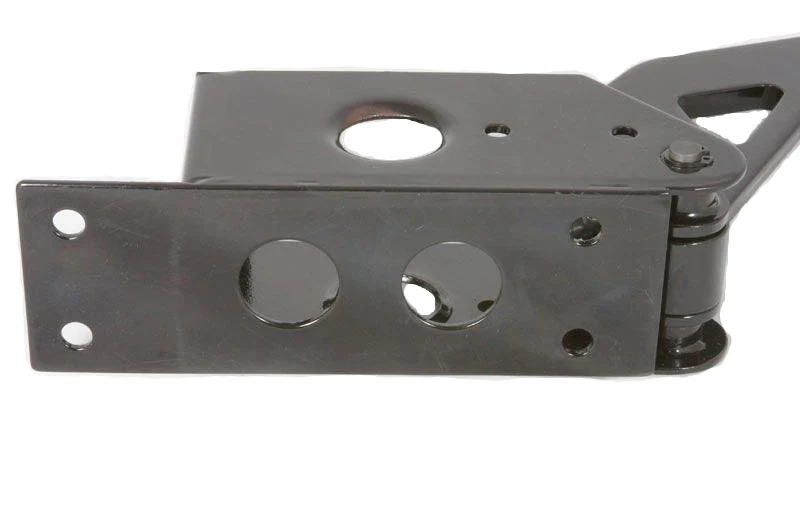

Heavy duty welded steel casing with captive nuts for master cylinder mounting.

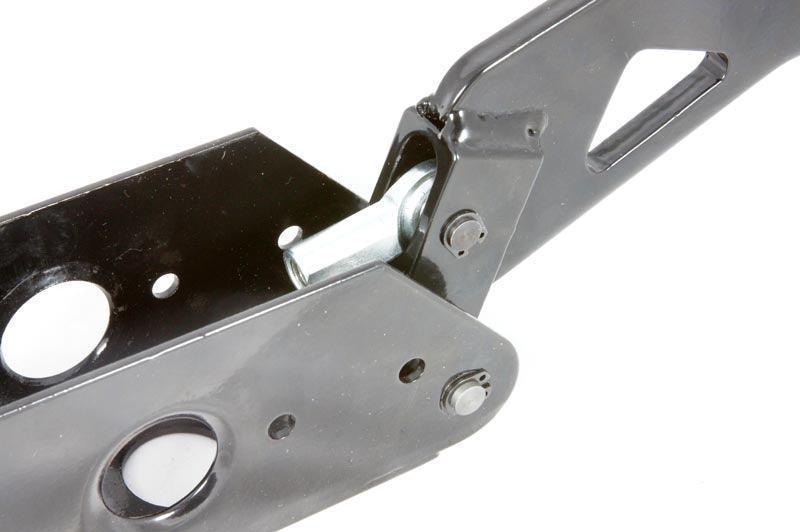

Tig welded aluminium handle assembly with blue anodised tube finisher.

5/16" UNF female threaded rod end for direct connection of a standard master cylinder push rod.

Four 7mm fixing holes in base @ 125mm x 32mm centres.

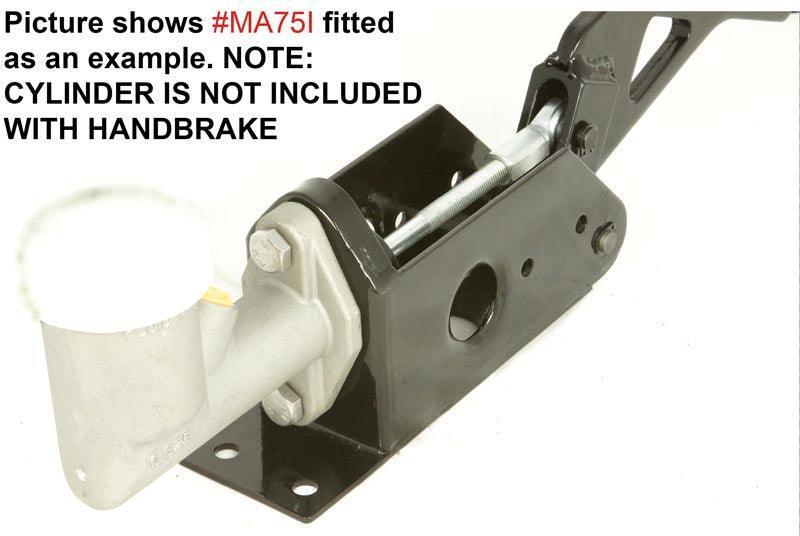

Will accept any of the master cylinders from our range.

Pushrod may require shortening.

FLY-OFF HYDRAULIC HANDBRAKE #FOHB

NOTE: MASTER CYLINDER IS NOT INCLUDED.
