With boots and connectors.

13.5 volt. (12 volt)

Normal running pressure 3 Bar.

Maximum pressure 8.5 Bar.

Flow 156 Ltrs / Hour.

Inlet size 12mm push-on.  This must be 12mm from the tank or swirl pot, pump does not run correctly with restricted flow.

Outlet size 8mm push-on.

Diameter 52mm.

Overall length 175mm.

IMPORTANT NOTE: ALL FUEL PUMPS MUST BE FITTED WITH A PRE-FILTER ON THE INLET SIDE. RETURNED PUMPS WILL NOT BE REPLACED OR REFUNDED IF FOUND DAMAGED DUE TO DEBRIS.

TO PREVENT VAPOUR LOCK OR AIRLOCK IT IS RECOMMENDED THAT ALL FUEL PUMPS ARE MOUNTED WITH THE OUTLET HIGHER THAN THE INLET.

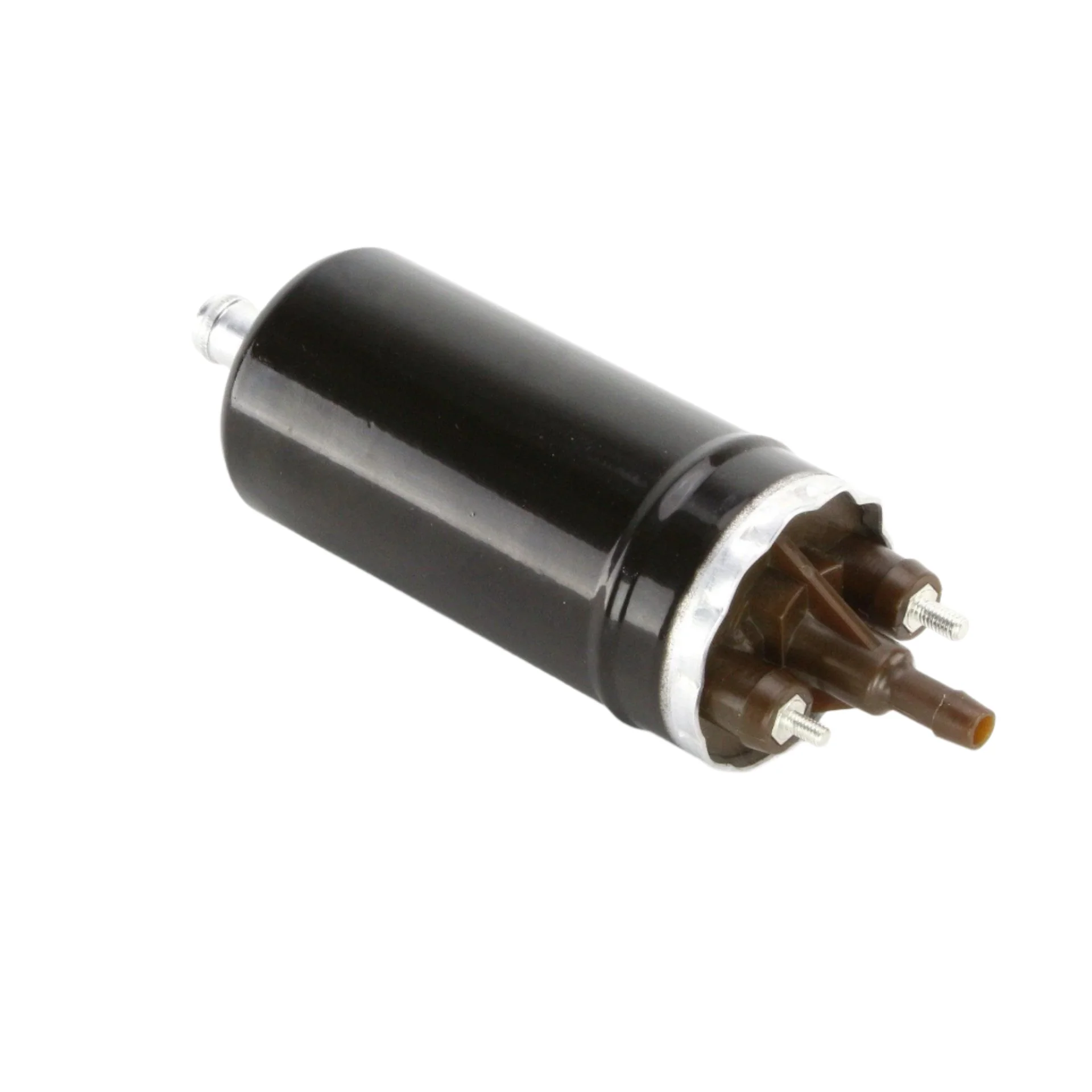

FUEL INJECTION PUMP #INJP4
