Plated steel.

An 8mm O.D. (6.5mm I.D.) pick up pipe fits through an 8mm hole in your fuel tank.

Sender flange diameter 81mm.

Five 5.8mm fixing holes at 63mm PCD.

2mm thick mounting flange.

Pick up pipes can be cut to your required length.

Mount using five M5 flush countersunk rivnuts in your fuel tank and a rubber or cork gasket.

NOTE: NOT SUPPLIED WITH GASKET

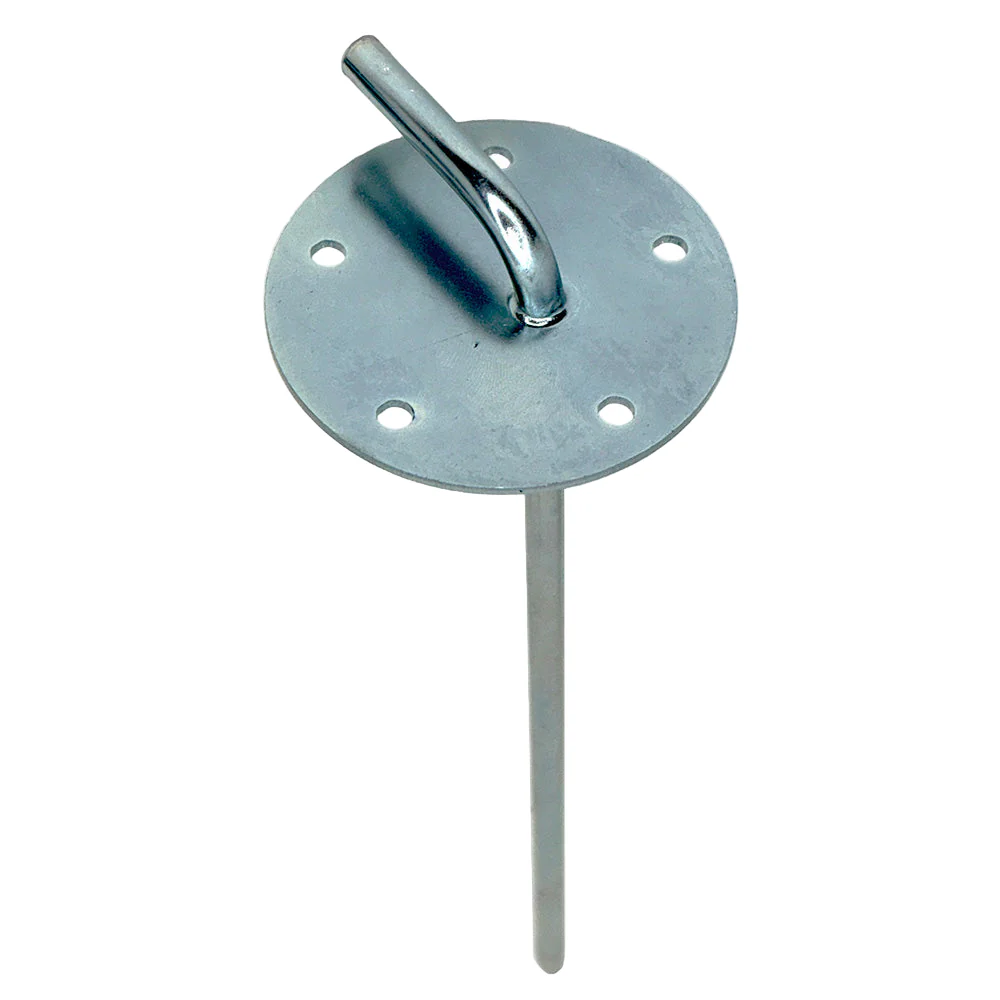

300mm straight pick up pipe.50mm angled outlet. #TPICK £20 (£24 inc vat)

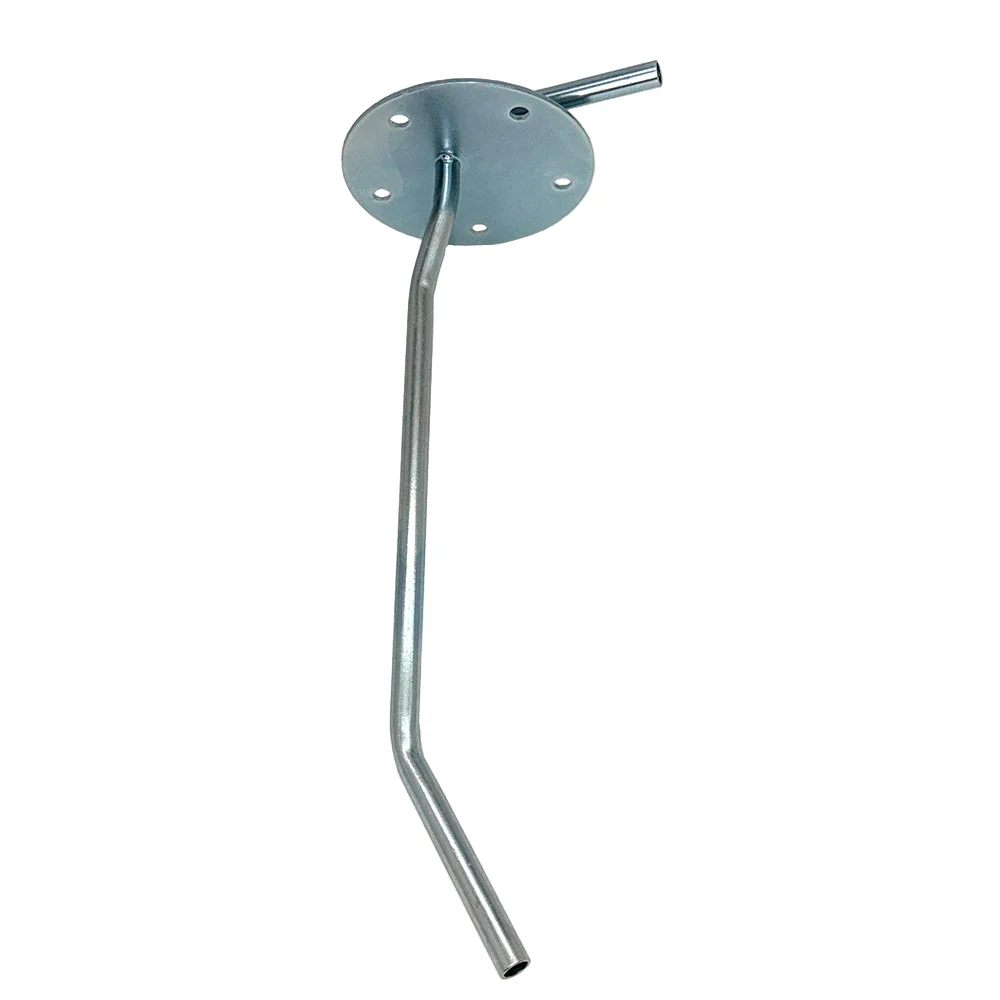

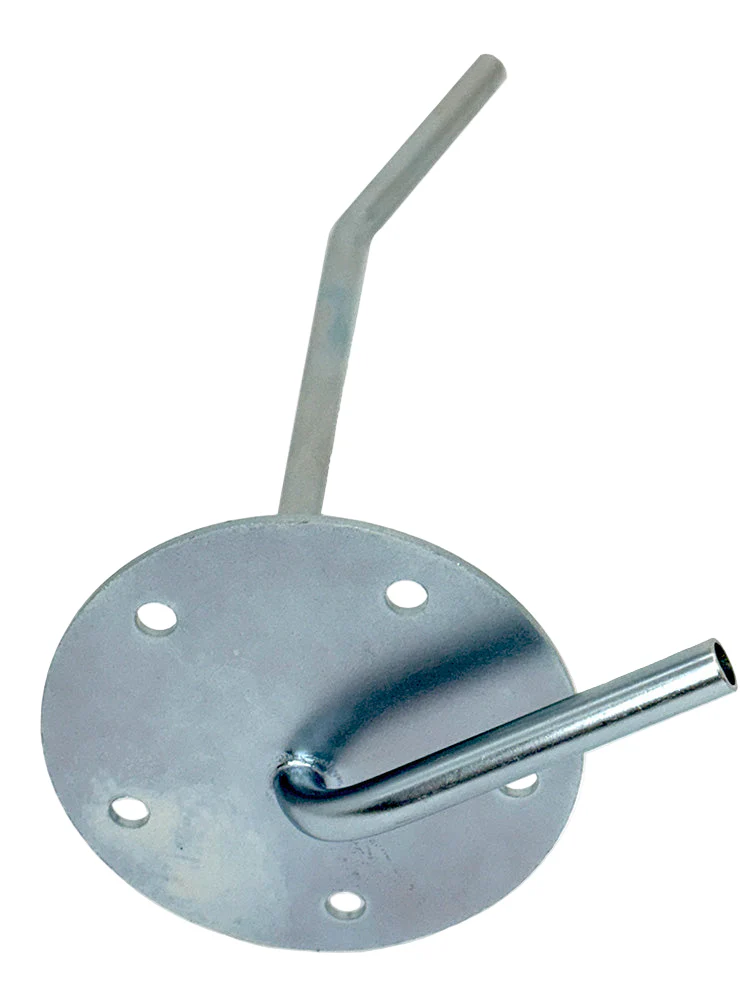

250mm angled pick up pipe and 50mm angled outlet. #TPICK2 £20 (£24 inc vat)
